Borinken Marine Group
St. Croix, USVI

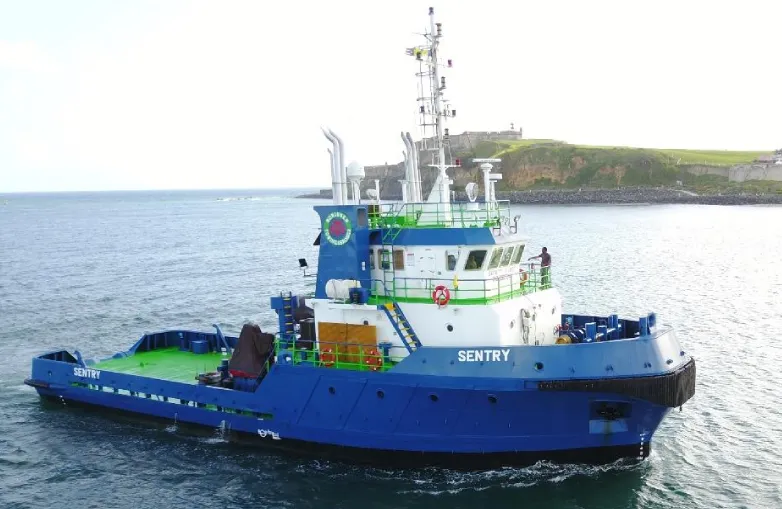

Sentry
| GENERAL INFORMATION | |||
|---|---|---|---|
| Vessel Type: | Ocean-going Twin Screw Conventional Tugboat | Class: | Bureau Veritas (Bv) |
| Builder: | Sapangar Shipyard, Sibu, Malaysia | Flag & Home Port: | Svg / Kingstown |
| Year Built: | 2008 | Official Number: | 10595 |
| Operator: | Borinken Towing & Salvage Llc (Bts) | Call Sign: | J884122 |
| Accommodations: | 8 Rooms (2 Single, 5 Double, 1×4-man) | Imo Number: | 9507946 |
| Crew: | 6 Personnel | Mmsi Number: | 377193000 |
| Liferafts: | 2 Viking Dk (16-person + 25-person) | Bnwas System: | Yes |
| Horsepower: | 3,200 Hp @ 1,800 Rpm | Gross/net Tonnage: | 290/87 |
| Bollard Pull: | 35 Tons | Displacement: | 312.48 Metric Tons (Full Load) |
| Speed: | 12 Knots @ Full Rpm | Deck Capacity: | 33' × 27' (891 Sq Ft) |
| Operating Draft: | 12 Ft | Fuel Capacity: | 52,834 Gal (200 M³) |
| Length (Loa): | 97 Ft | Water Capacity: | 26,417 Gal (100 M³) |
| Beam: | 29 Ft 6 In | Lube Oil Capacity: | 512 Gal |
| Depth: | 13 Ft 9 In |
| MACHINERY | |
|---|---|
| Main Engines: | 2 ea Cummins Kta50-m2 (1,600 Bhp @ 1,800 Rpm) |
| Gearboxes: | 2 ea Reintjes Waf665l (Ratio 5.95:1) |
| Kort Nozzles: | Yes |
| Generators: | 2 ea Cummins 6bts9-dm (1,500 Rpm) 122 Kw (50 Hz) 91 Kw |
| Steering System: | 3.5-ton Electro-hydraulic |
| Crane: | Fassi F190a.23 (1.5t Swl, 33ft Reach) |
| Fire Detection: | Fire Boy Xintex Sincro Asm |
| Fire Protection: | Fixed Co₂ System (Engine Room) |
| Sewage System: | Head Hunter (15-person Capacity) |
| COMMUNICATIONS & NAVIGATION | |
|---|---|
| Chart Plotter: | Furuno Navnet 3d |
| Primary Radar: | Furuno Navnet 3d |
| Secondary Radar: | Furuno 1832 Mark Ii (48nm Range) |
| Satellite Compass: | Furuno Scx-50 |
| Ais: | Furuno Fa50 (Class B) |
| Primary Gps: | Furuno Gp-32 |
| Secondary Gps: | Furuno Gp-3308 |
| Echo Sounder: | Furuno Fcv-620 |
| Satcom: | Kvh Tracphone V7-hts |
| Ssb Radio: | Furuno Fs-1570 |
| Autopilot: | Furuno Navpilot 500 |
| DECK MACHINERY & EQUIPMENT | |
|---|---|
| Tow Winch : | Electro-Hydraulic / Capacity - 40 tons / Brake Holding Power (2nd Layer) - 120 tons / Tow Wire - 2,100' x 2" |
| Aft Tow Winch: | Electro-Hydraulic / two (2) 750 Kg anchors w/ 11 shots of 22 mm stud link chain (Grade U-2) each |
| Stern Capstan : | Vertical Electric Capstan VT-SP (3 tons) |
